View and DCS

Views, View Windows & DCS

AnvilCAD Lite is the most complete, easiest to learn, most reliable and cost effective mechanical CAD software available!

AnvilCAD Lite is light in price - heavy in value. Unconditionally guaranteed for 30 days or your money back. No gamble, just a great investment.

No 3D CAD system is complete without providing tools to freely view your model from any angle. AnvilCAD Lite not only lets you view your model from any angle, but lets you construct geometry relative to your model - not just from predefined orthographic views.

Views & View Windows let you display a variety of view and window configurations. Some provide preset views, while others let you assign the view number.

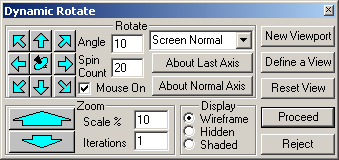

Dynamic Rotate lets you use the mouse to spin your model into the view orientation you like or you can specify the rotation angle and direction for a more precise view definition.

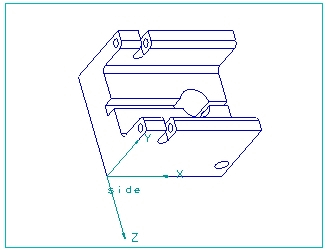

DCS - Defined Coordinate System lets you relate the coordinate system to your existing geometry so that construction is view-independent.

This greatly increases efficiency when working with 3D models.

AnvilCAD Lite will satisfy all your CAD needs and more.

Browse our features ...

check our price ...

place an order!

You won't believe what AnvilCAD Lite has to offer!

If you have any questions, before or after the purchase of AnvilCAD Lite, please call our Cave Creek, Arizona headquarters, to speak with a live representative. We may be reached at (480) 991-8700 during our regular business hours M-F 8:00 AM - 5:00 PM MST.
